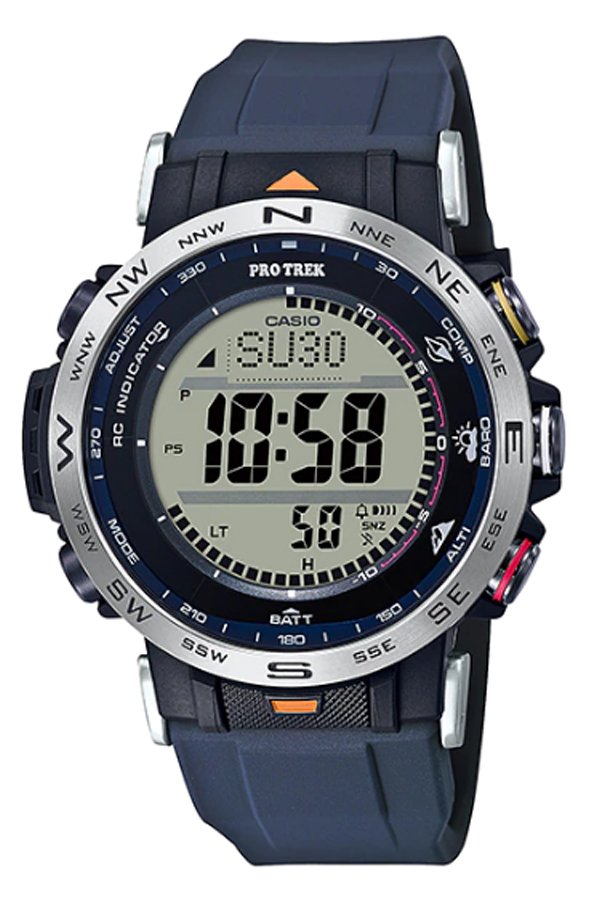

Casio Protrek - PRW-30AE-2
Features
An array of large metal buttons on the right provide one-touch access to compass, barometric pressure/altitude, and temperature readings that appear on the LCD. Icons on the face glass next to each of the buttons contribute to easy-to-understand, intuitive access to the information you need even when facing a severe outdoor environment. The digital LCD uses a high-contrast bold font, which, in combination with an STN LCD, ensures improved visibility even under harsh sunlight.
Other functions include Tough Solar, time calibration signal reception, and 100-meter water resistance, all of which help to ensure you get the timekeeping performance you need under harsh conditions.In addition to all of this, this model boasts smaller cases and a thinner looking bezel. The watch is designed so they do not interfere with wrist movement while engaging in mountain climbing, camping, and other outdoor activities. This model comes with DURA-SOFT bands that incorporate silicon materials to improve durability. The fit of this watch has been improved to support comfort during longer mountain climbing and other outdoor sessions.
This model packs all the function of triple sensors and an easy-to-read digital display into an amazingly compact configuration. The PRW-30AE comes with a carabiner attachment, making this model the perfect choice for everything from normal daily wear to serious outdoor adventuring.
- Triple Sensor (bearing, altitude/barometric pressure, temperature)
- MULTIBAND 6 (Automatically adjusts time settings based on reception of one of six time calibration signals around the globe: Japan (2), China, United States, England, Germany.)
- Tough Solar
- Barometric pressure graph
- Barometric pressure alarm
- Low-temperature resistance (–10°C/14°F)
- Slide lever band
Specifications
- Case / bezel material: Resin / Stainless steel
- Accompanied attached band
- Silicon band
- Mineral Glass
- 100-meter water resistance
- LED backlight (Super Illuminator)
Full auto LED light, selectable illumination duration (1.5 seconds or 3 seconds), afterglow - Tough Solar (Solar powered)
- Low-temperature resistant (–10°C/14°F)
- Time calibration signal reception
Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful)
Manual receive
The latest signal reception results
*5 times a day for the Chinese calibration signal - Time Calibration Signals
Station name: DCF77 (Mainflingen, Germany)
Frequency: 77.5 kHz
Station name: MSF (Anthorn, England)
Frequency: 60.0 kHz
Station name: WWVB (Fort Collins, United States)
Frequency: 60.0 kHz
Station name: JJY (Fukushima, Fukuoka/Saga, Japan)
Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga)
Station name: BPC (Shangqiu City, Henan Province, China)
Frequency: 68.5 kHz - Digital compass
Measures and displays direction as one of 16 points
Measuring range: 0 to 359°
Measuring unit: 1°
60 seconds continuous measurement
Graphic direction pointer
Bidirectional calibration
Magnetic declination correction
Bearing memory - Altimeter
Measuring range: –700 to 10,000 m (–2,300 to 32,800 ft.)
Measuring unit: 1 m (5 ft.)
Manual memory measurements (up to 30 records, each including altitude, date, time)
Auto log data (High/low altitudes, auto cumulative ascent and descent)
Trek log data (up to 14 records of high/low altitudes, auto cumulative ascent and descent of particular treks)
Others: Relative altitude readings (–3,000 to 3,000 m)
Selectable measurement interval: 5 seconds or 2 minutes
*1 second for first 3 minutes only
*Changeover between meters (m) and feet (ft) - Barometer
Display range: 260 to 1,100 hPa (7.65 to 32.45 inHg)
Display unit: 1 hPa (0.05 inHg)
Atmospheric pressure tendency graph (Past 42 hours of readings)
Atmospheric pressure differential graphic
Barometric pressure tendency information alarm (beep and arrow indicate significant changes in pressure)
*Changeover between hPa and inHg - Thermometer
Display range: –10 to 60°C (14 to 140°F)
Display unit: 0.1°C (0.2°F)
*Changeover between Celsius (°C) and Fahrenheit (°F) - World time
31 time zones (48 cities + Coordinated Universal Time), daylight saving on/off, Home city/World time city swapping - Sunrise, sunset time display
Sunrise time and sunset time for specific date, Daylight pointers - 1/10-second stopwatch
Measuring capacity: 999:59'59.9"
Measuring modes: Elapsed time, split time, 1st-2nd place times - Countdown timer
Measuring unit: 1 second
Countdown range: 24 hours
Countdown start time setting range: 1 minute to 24 hours (1-minute increments and 1-hour increments) - 5 daily alarms (with 1 snooze alarm)
- Hourly time signal
- Battery level indicator
- Power Saving (display goes blank to save power when he watch is left in the dark)
- Full auto-calendar (to year 2099)
- 12/24-hour format
- Button operation tone on/off
- Regular timekeeping: Hour, minute, second, pm, year, month, date, day
- Accuracy: ±15 seconds per month (with no signal calibration)
- Approx. battery operating time:
6 months on rechargeable battery (operation period with normal use without exposure to light after charge)
22 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge) - Size of case : 51.6×45.2×12.3mm
- Total weight : 66g
